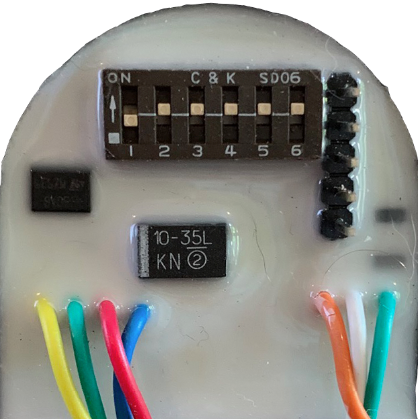

Every flowmeter has a dip switch to allow you to assign the flowmeter to a channel/tap. In order to differentiate between the taps the dip switches need set per tap. The flowmeter below is set to tap # 1

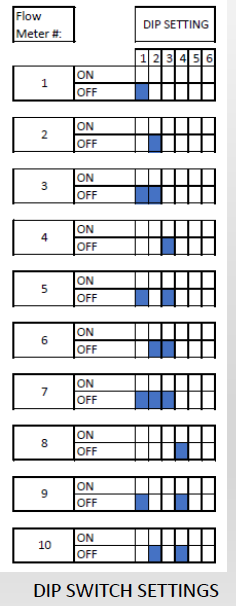

Below is the table indicating how to adjust the dipswitches for flowmeters numbered 1 - 10. an orange down arrow indicates switch set down (off). EACH ROW INDICATES A FLOWMETER NUMBER.



NB ENSURE YOU DO NOT HAVE DUPLICATE SETTINGS IN THE SYSTEM
